How to solve these problems in LED panel light

LED panel lights, also known as LED flat lights, with beautiful and generous environmental protection and energy saving advantages, but the actual penetration rate is not high, leading to popularity is not smooth because some LED manufacturers’ product failure rate is high, thus affecting the product reputation.The following will offer you brief introduction about LED panel lights common problems and countermeasures.LED Panel Lights (2)

1) The surrounding dark
Light guide plate problem. Give up the public light guide plate, go for the specially designed light guide plate. If you do not want to increase the cost, you can try light guide plate samples from different factories, try to see if you can find the right one.
2)Light blue or yellow
A. adjust the distance between the lamp beads and the light guide plate, or change 3T to 4T, because the blue and yellow light refractive index is different. B. also maybe the problem of lamp beads, replace the lamp beads.

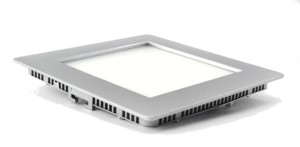

LED Panel Lights (1)3) Aluminum frame joints large
Improve the processing accuracy, design positioning device
4) Bright spots
Redesign the light guide plate, add a good diffuse plate
5) Water ripples appear
This is caused by current ripple, replacing the power supply
6) Luminous flux measurement is low

Using a distributed photometer, choose high-quality lamp beads
7) other
PMMA thermal expansion, if oppression to the lamp beads may also be light blue or even lights failure.

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL300x300

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL600x600

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL620x620

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL300x600

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL300x1200

Edge-lit LED Panel Light Manufacturer

LED Panel Light EPL600x1200

Specification Parameter for Edge-lit LED Panel Lights2020-12-02T10:08:22+00:00
Model No. Power LED Type Size(mm)
EPL303012W 12w SMD2835 295x295x12
EPL303018W 18W SMD2835 295x295x12
EPL303024W 24W SMD2835 295x295x12
EPL306018W 18W SMD2835 295x595x12
EPL306024W 24W SMD2835 295x595x12
EPL306027W 27W SMD2835 295x595x12
EPL306036W 36W SMD2835 295x595x12
EPL606036W 36W SMD2835 595x595x9
EPL606042W 42W SMD2835 595x595x9
EPL606048W 48W SMD2835 595x595x9
EPL606054W 54W SMD2835 595x595x9
EPL626236W 36W SMD2835 620x620x9
EPL626242W 42W SMD2835 620x620x9
EPL626248W 48W SMD2835 620x620x9
EPL626254W 54W SMD2835 620x620x9
EPL301236W 36W SMD2835 295x1195x9
EPL301242W 42W SMD2835 295x1195x9
EPL301248W 48W SMD2835 295x1195x9
EPL301254W 54W SMD2835 295x1195x9
EPL301260W 60W SMD2835 295x1195x9
EPL601254W 54W SMD2835 595x1195x9
EPL601260W 60W SMD2835 595x1195x9
EPL601272W 72W SMD2835 595x1195x9
